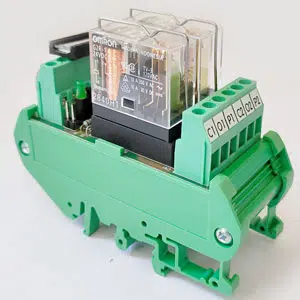

Two Channel Relay Module: AE-02-024D-1-B-C (G2R)
The Technical Specifications of Two Channel Relay Module AE-02-024D-1-B-C (G2R)
- 24V 2 Channel OMRON G2R Relay Module AE-02-024D-1-BC
- 10A SPDT 2 Channel Relay Board with LED Indication
- DIN Rail Mountable 2 Channel Relay with Freewheeling Diode
- Universal 2-Channel Relay Module for Automation Control
- High Current 24V Relay Board with 2 SPDT Channels
Two Channel Relay Module: AE-02-024D-1-B-C (G2R) Technical Specifications:
| Board Manufactures | Agility |
| Channels | 2 |
| Coil Voltage | 24VDC |
| Switching Current | 10A at 30VDC/250VAC |
| Contact Type 1C/O SPDT | 1C/O SPDT |
| Relay Make | OMRON G2R Series |
| Relay Actuation | LED Indication |
| Relay Coil Protection | Freewheeling Diode |
| Mounting | Universal DIN Rail |
| Input indication | 3 mm green LED for input status |
| Dimension LxWxH (mm) | 36 x 90 x 68 |
| Power consumption | Approx. 530mW |
| Coil resistance (Ohms) | 1100 |
| Rated coil current | 21.8mA |
| Must operate voltage | 80% max. of rated voltage |
| Must release voltage | 30% max. of rated voltage |
| Maximum voltage | 140% at 23°C |
| Contact material | Ag-alloy (Cd free) |
| Maximum switching voltage | 380V AC, 125V DC |
| Contact resistance | 30mOhm max. |
| Operate time | 15 ms max |
| Release time | DC: 5 ms max. & AC: 10 ms max |
| Ambient operating temperature | 0°C to 50°C |
| Housing material | PVC/V0 Grade, Phoenix Contact or equivalent |
| Housing color | Green |
| Conformal coating | Insulate, protect, and seal electronic parts, available on request |
| RoHS compliant | All the components used including PCBs are RoHS approved |
Looking for the Agility Two Channel Relay Module AE-02-024D-1-B-C (G2R)? This module comes with 2 channels, each operating on a 24VDC coil voltage. It’s capable of switching 10A currents at 30VDC or 250VAC. The contacts are 1C/O SPDT, from the OMRON G2R Series. It includes a freewheeling diode for added coil protection and LED indicators for relay actuation. Designed for universal DIN Rail mounting. For the best deals, IndMALL Automation is your go-to source.
