Wago Terminal Blocks | Fuse & DIN Rail Terminal Block

At IndMALL Automation, we offer a diverse range of Wago Terminal Blocks, each tailored to meet specific industrial needs. Our Rail-Mount models utilize push-in CAGE CLAMP® technology for simplified wiring processes. These blocks are available in various forms including through, ground, and fused types, ensuring versatility across applications. Each unit features user-friendly push-button operation and is designed for safety with integrated test ports and color-coded components. Additionally, they are compatible with a wide array of accessories, enhancing their adaptability and functionality in various setups.

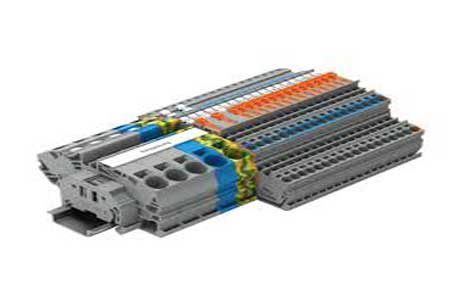

Wago Terminal Blocks:TOPJOB S Rail-Mount

Uses push-in CAGE CLAMP® technology for easy wiring.
Available in various models including through, ground, fused, diode, and LED types.
Features push-button operation, integrated test ports, and color-coded design for ease of use and safety.
Compatible with a range of accessories for enhanced customization.

Wago Din Rail Terminal Blocks: Installation Rail-Mount

The terminal blocks are designed for easy installation with the use of WAGO’s innovative push-in CAGE CLAMP® technology.
They are suitable for various wiring applications due to their flexibility and ease of use.
These terminal blocks come in different models to accommodate specific needs such as grounding, fusing, and circuit protection.
Enhanced safety and organization are ensured through color-coded designs and integrated testing options.

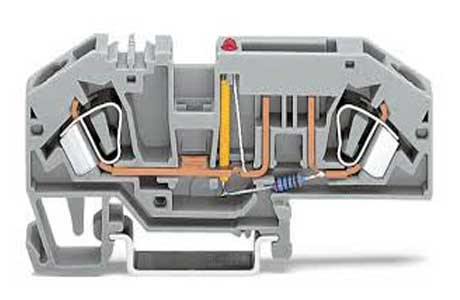

Wago Fuse Terminal Bock:Pluggable Rail-Mount

Technology: Features pluggable connection for quick and secure installations.
Design: Compact design allows for efficient use of space in distribution boxes and control cabinets.
Versatility: Suitable for various applications due to their modularity and flexibility.
Safety: Provides reliable connections with high vibration resistance, ensuring long-term stability.

Wago PCB Terminal Blocks:POWER CAGE CLAMP

Heavy Duty: Designed for high-current applications, supporting up to 232 A.
Robust: Suitable for conductor sizes from 0.5 mm² to 95 mm².
Flexible: Offers various connection technologies, including screw, spring, and push-in for solid and stranded wires.
Safety: Enhanced touch-proof protection to ensure safe installation and operation.

Wago Din Rail Terminals:Mini Rail-Mount

Compact Design: Specifically engineered for use in confined spaces.
Connection Types: Features various connection technologies including push-in and spring-cage for reliable and fast wiring.
Versatility: Suitable for small-scale applications across various industries.
Durability: Designed to maintain secure connections even in environments with high vibration.

Wago Lever Terminal Block:Classic Rail-Mount

Connection Technology: Utilizes the innovative CAGE CLAMP® technology for quick and tool-free wiring.
Efficiency: Offers a faster and more reliable connection method compared to traditional screw terminals.
Safety: Features a vibration-proof, maintenance-free connection that ensures long-term reliability.
Flexibility: Compatible with various wire types and sizes, making them versatile for different applications.

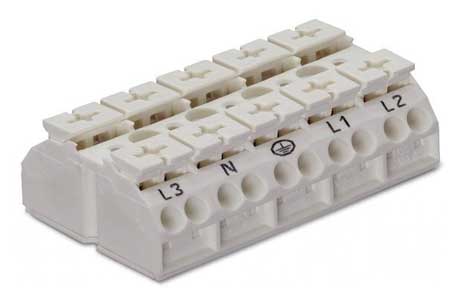

Wago Ground Terminal Block:Chassis-Mount Terminal Strips

Design: These terminal blocks are chassis-mount, offering robust and reliable connections for various mounting scenarios.
Connection Technology: Utilizes WAGO’s innovative connection technologies for secure and maintenance-free wiring.
Applications: Ideal for power distribution tasks in industrial settings where space-saving and efficient connections are critical.
Durability: Built to withstand industrial environments, ensuring long-term reliability and performance.

WAGO offers a comprehensive range of rail-mount terminal blocks, utilizing push-in CAGE CLAMP® connection technology for secure and easy wiring. These products are designed for various industrial applications, providing fast, vibration-proof, and maintenance-free connections. The terminal blocks cater to a broad spectrum of needs, from simple wiring solutions to complex power distribution systems, ensuring safety and efficiency. They eliminate the need for ferrules or crimping, reducing installation time and maintenance costs.

Frequently Asked Questions

What is a WAGO terminal block?

A WAGO terminal block is a versatile connector that simplifies wiring tasks in junction and distribution boxes. These blocks utilize innovative connection technologies, ensuring secure and maintenance-free installations. They are designed to accommodate a variety of wiring requirements, making them ideal for both industrial and residential applications.

What size are WAGO terminals?

WAGO terminals are designed to accommodate various conductor sizes efficiently. Their small terminals can connect conductors up to 1.5 mm² (16 AWG) with a terminal block width of only 3.5 mm (0.138 inch). For larger needs, terminals handling up to 4 mm² (12 AWG) have a width of just 5.2 mm (0.205 inch), supported by the Push-in CAGE CLAMP® for quick wiring.

What type of termination is a WAGO?

WAGO terminals utilize a PUSH WIRE connection for termination. This type suits solid conductors, making them ideal for circuit connections and distribution panels wiring. The WAGO 2273 series features COMPACT splicing connectors to facilitate efficient, reliable setups.

How do WAGO blocks work?

WAGO blocks function using a clamp mechanism to terminate wires. They are designed to securely connect both fine stranded and solid stranded conductors. Once a wire is inserted, the WAGO clamp tightens to hold the conductor firmly while also enclosing its insulation, ensuring a stable and secure electrical connection. This method simplifies installations and provides a reliable connection for various wiring applications.
