Waycon Encoders | Incremental & Absolute Rotary Encoder

Welcome to IndMALL Automation, your trusted source for Waycon Encoders. Our selection includes a range of rotary and absolute encoders designed for precise feedback in various applications. Choose from models like the Analog Rotary Sensor WP and Rotary Encoder WPH, both available in ø40 mm and ø60 mm diameters with IP67 protection. For more robust needs, explore the Absolute Encoders M36 and M58, offering multiple output options and solid or blind hollow shafts. Our Incremental Encoders B36 and B58 provide TTL and HTL outputs, suited for complex machinery. Additionally, the SSI Rotary Encoder features extensive housing and shaft options, ensuring compatibility across different industrial setups. Discover reliable encoding solutions with Waycon Encoders at IndMALL Automation.

Main Image
Waycon Encoders: Analog Rotary Sensor WP

Waycon Encoders: Analog Rotary Sensor WP

  • Output Options: 0…10 V, 4…20 mA, Potentiometer.

  • Housing Diameter: Available in ø40 mm and ø60 mm.
  • Protection Class: IP67 for housing, up to IP67 for the shaft.
  • Shaft Type: Solid shaft.

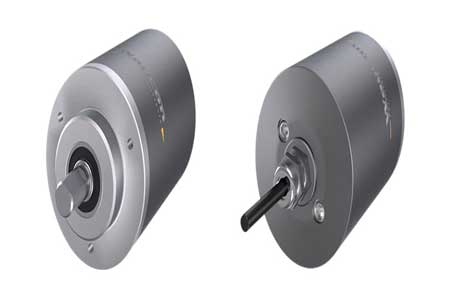

Waycon Rotary Encoder: WPH

Waycon Rotary Encoder: WPH

  • Output Options: 0.5…4.5 V, 0…5 V.

  • Sensor Element: Hall effect.
  • Housing Diameter: Available in ø40 mm and ø60 mm.
  • Protection Class: IP67 for housing and shaft.
  • Shaft Type: Solid shaft.

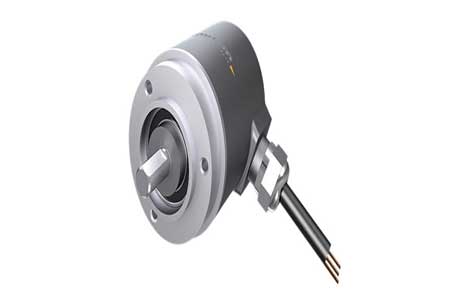

Waycon Absolute Encoder: M36 and M58

Waycon Absolute Encoder: M36 and M58

  • Output Options: 0…5 V, 0…10 V, 4…20 mA.

  • Diameter Housing: Available in ø36 mm and ø58 mm.
  • Protection Class: Up to IP67.
  • Shaft Types: Available as solid shaft or blind hollow shaft.

Waycon Absolute Rotary Encoder: WPI

Waycon Absolute Rotary Encoder: WPI

  • Output Type: Line Driver.

  • Diameter Housing: Available in ø40 mm and ø60 mm.
  • Protection Class: IP67 for both housing and shaft.
  • Shaft Type: Solid shaft.

Waycon Incremental Encoder: B36 and B58

Waycon Incremental Encoder: B36 and B58

  • Output Types: TTL, HTL.

  • Signals: A, /A, B, /B, Z, /Z.
  • Diameter Housing: Available in ø36 mm and ø58 mm.
  • Protection Class: Up to IP67.
  • Shaft Options: Available with solid shaft or hollow shaft.

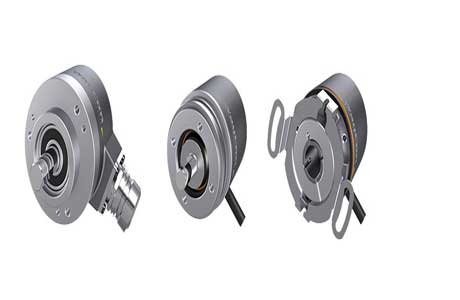

Waycon Incremental Rotary Encoder: SSI

Waycon Incremental Rotary Encoder: SSI

  • Output Type: SSI (Synchronous Serial Interface)

  • Housing Diameter: Available in ø58 mm and ø36 to ø46 mm (F36)
  • Protection Class: Up to IP67, with optional Ex2/22 certification
  • Shaft Options: Solid shaft, hollow shaft, or hollow through shaft

At IndMALL Automation, explore the advanced range of Waycon Encoders, tailored for precision in rotational measurements. Our product lineup includes the Waycon Analog Rotary Sensor WP, suitable for diverse applications with options for different output signals and a sturdy IP67-rated housing. The Waycon Rotary Encoder WPH employs Hall effect technology for high accuracy, and the Waycon Absolute Encoder series offers versatile configurations for exact positioning. Each model is designed for robust performance and compatibility in various industrial environments.

Frequently Asked Questions

How many types of encoders are there?

Encoders are classified into four main types: mechanical, optical, magnetic, and electromagnetic induction. Each type serves specific applications and environments. Mechanical encoders are robust; optical encoders provide high accuracy. Magnetic encoders are ideal for harsh conditions, while electromagnetic induction encoders offer durability without contact.

What is a rotary encoder and how does it work?

A rotary encoder is a sensor that tracks position and speed. It converts rotational movements into electrical signals. These signals are then processed to determine the displacement. Rotary encoders are used in various applications to monitor the motion and direction of a rotating shaft.

How to test a rotary encoder?

To test a rotary encoder, first connect it to a multimeter. Turn on the encoder and slowly rotate its shaft. Monitor the multimeter for changes in voltage or pulses. This method checks the encoder’s functionality by ensuring it accurately converts mechanical rotations into electrical signals.

What is another name for a rotary encoder?

A rotary encoder is also commonly known as a shaft encoder. In technical contexts, it may simply be referred to as an encoder. These terms are used interchangeably in various technical documents and specifications.
