Waycon Ultrasonic Sensors | Waycon Distance Ultrasonic Sensor

At IndMALL Automation, explore our Waycon Ultrasonic Sensors range, ideal for precise distance measurement in various industrial applications. The UFA2 series offers extensive measurement ranges and robust IP67 protection, ensuring reliability in harsh environments. The UFP, UPA, and UPT models feature high resolution and linearity, housed in durable designs suitable for diverse setups. Additionally, the UBA series excels in edge control with its specialized fork-shaped housing. These sensors combine advanced technology with flexible output options to meet complex measurement needs efficiently.

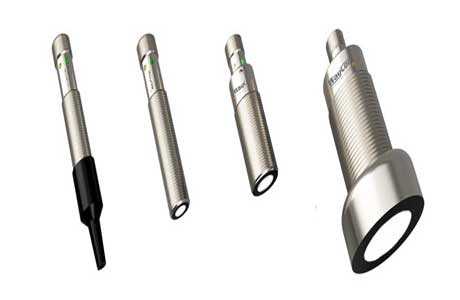

Waycon Ultrasonic Sensors: UFA2

Measurement Range Options: From 0…150 mm to 600…6000 mm.
Maximum Resolution: 1 mm.
Linearity: Up to ±0.4% deviation.
Protection: IP67 rated for water and dust resistance.
Outputs: Options include 0…10 V, 4…20 mA, and switching outputs.
Sensor Housing Sizes: M12x1, M18x1, M30x1.5 depending on the model.

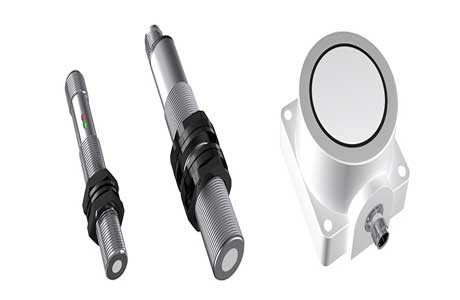

Waycon Ultrasonic Sensor UFP: UPA and UPT

Measurement Ranges: 25 mm to 6000 mm.
Resolution: 0.125 mm maximum.
Linearity: ±0.3% maximum.
Protection: IP65 and IP67.
Outputs: Analog (0…10 V, 4…20 mA) and switching.
Housing Options: Cylindrical and cuboid forms, sizes M12x1, M18x1, M30x1, and 80 x 80 x 50 mm, 101 x 36 x 25 mm.

Waycon Ultrasonic Distance Sensor: UBA

Application: Ultrasonic fork for edge control.
Repeatability: 0.1 mm.
Linearity: ±1%.
Protection: IP67 rated.
Output: 0…10 V.
Housing Dimensions: Available in fork shapes 30 x 74 x 65 mm and 39 x 92 x 80 mm.

IndMALL Automation presents Waycon Ultrasonic Sensors, crafted for precise measurement across a broad spectrum. Our sensors, including models like UFA2, UFP, and UPT, offer a range of up to 6000 mm with high resolution and linearity. These sensors excel in harsh environments with IP67 protection and provide various output options for robust industrial applications. Ideal for distance measurement, these sensors ensure reliability and precision.

Frequently Asked Questions

What is an ultrasonic sensor used for?

An ultrasonic sensor is a non-contact device used to measure distance and velocity. It emits ultrasonic waves and detects the echo from objects. This sensor is ideal for applications where precise, reliable distance measurements are needed. Ultrasonic sensors are commonly used in automotive, robotics, and industrial automation systems.

What is the working principle of sensor?

The working principle of resistive sensors revolves around changes in electrical resistance. These changes occur when the sensor’s material responds to alterations in a physical quantity. This reaction allows the sensor to convert physical phenomena into quantifiable electrical signals, facilitating accurate measurements across various applications.

Who uses ultrasonic sensors?

Ultrasonic sensors are widely used across various industries. Key sectors include machinery, medical, aerospace, agriculture, security, and automotive. These sensors are valued for their precision in distance measuring and object detection, making them essential in applications ranging from robotic navigation to medical diagnostics.
