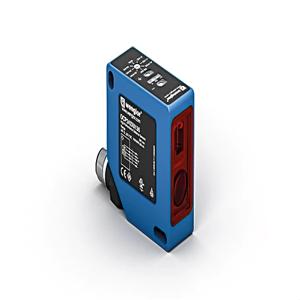

Wenglor OCP162P0150E Photoelectric Sensor
The Wenglor OCP162P0150E Photoelectric Sensor offers 40 ... 160 mm working range, 20 ... 70 µm reproducibility maximum, Laser (red) light source, M12 × 1; 8-pin, X-cod. connection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor laser Series.
| Brand | Wenglor |
| Product Type | Photoelectric Sensor |
| Model Number | OCP162P0150E |
Wenglor OCP162P0150E Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Working Range | 40 ... 160 mm |
| Reproducibility maximum | 20 ... 70 µm |
| Linearity Deviation | 50 ... 160 µm |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Temperature Drift | < 10 µm/K |
| Temperature Range | -25 ... 50 °C |
| Setting Method | Menu (OLED) |
| Housing Material | Plastic, PMMA Zinc diecasting |
| Degree of Protection | IP68 |
| Connection | M12 × 1; 8-pin, X-cod. |
| Optic Cover | Plastic, PMMA |
| Weight | 264 g |
| Other parameters | Resolution Output rate Contactless teach-in Filter Laser light Offset Teach-in mode |
| Measuring Range | 120 mm |
| Output rate | 330 /s |
