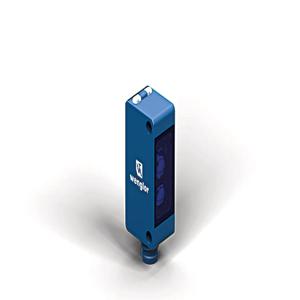

Wenglor P1KH024 Photoelectric Sensor
The Wenglor P1KH024 Photoelectric Sensor offers 200 mm range, 15 ... 30 V DC supply voltage, 100 Hz, IP67, IP68, Push-pull, NPN, PNP output. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor P1 Series.
| Brand | Wenglor |
| Product type | Photoelectric Sensor |
| Model Number | P1KH024 |
Wenglor P1KH024 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Range | 200 mm |
| Setting Range | 30 ... 200 mm |
| Switching Hysteresis | < 10 % |
| Light Source | Red Light |
| Supply Voltage | 15 ... 30 V DC |
| Supply Voltage with IO-Link | 18 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 100 Hz |
| Response Time | 5 ms |
| Temperature Drift | < 5 % |
| Temperature Range Switching | -40 ... 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS/PC |
| Degree of Protection | IP67, IP68 |
| Connection | M8 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 6 g |
| Output | Push-pull, NPN, PNP |
| Circuit | NC NC/NO NO |
