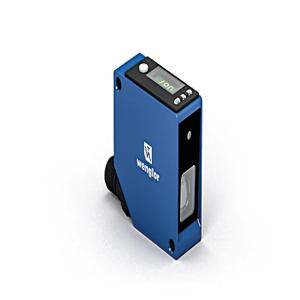

Home Wenglor Photoelectric Sensors Laser Distance Sensors P3PC302 Wenglor P3PC302 Photoelectric Sensor The Wenglor P3PC302 Photoelectric Sensor offers 60 ... 660 mm working range, 550 µm reproducibility maximum, 18 ... 30 V DC supply Voltage , M12 × 1; 5-pin connection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor laser Series .
Brand Wenglor Product Type Photoelectric Sensor Model Number P3PC302
Wenglor P3PC302 Photoelectric Sensor – Technical Specifications Specification Value Working Range 60 ... 660 mm Setting Range 60 ... 660 mm Reproducibility maximum 550 µm Reproducibility: 1 Sigma 30 µm Linearity Deviation 900 µm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Supply Voltage 18 ... 30 V DC Current Consumption (Ub = 24 V) < 50 mA Switching Frequency 650 Hz Response Time < 0.5 ms Temperature Drift < 50 µm/K Temperature Range -30 ... 60 °C Number of Switching Outputs 2 Switching Output Voltage Drop < 1.5 V Switching Output/Switching Current 100 mA Short Circuit Protection yes Setting Method Teach-In Housing Material Aluminum, anodised
Plastic, ABS Degree of Protection IP67 Connection M12 × 1; 5-pin Optic Cover Plastic, PMMA Weight 69 g Output Error Output
Push-pull
NPN
PNP Circuit NC
NC/NO
NO Other parameters Exposure time
Laser light
Switching hysteresis
Teach-in mode
Off-delay
On-delay
