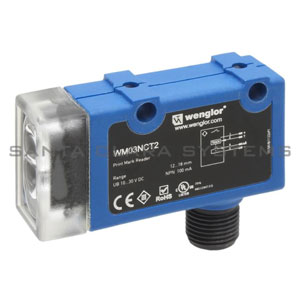

WM03NCT2: Wenglor NPN NO/NC Color Sensor
Technical Specifications of Wenglor NPN NO/NC Color Sensor WM03NCT2:
| Spec | Value |
|---|---|
| Working Range | 12 ... 18 mm |
| Light Source | White Light |
| Switching Frequency | 5 kHz |
| Connection | M12 × 1; 4-pin |
Wenglor NPN NO/NC Color Sensor WM03NCT2 Technical Specifications:
| Specification | Value |
|---|---|
| Working Range | 12 ... 18 mm |
| Working Distance | 15 mm |
| Resolution (Gray Scale) | 20 |
| Switching Hysteresis | < 2 % |
| Light Source | White Light |
| Wavelength | 400 ... 700 nm |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 1.5 × 2.5 mm |
| Supply Voltage | 10 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 5 kHz |
| Response Time | 100 µs |
| Temperature Range | -25 ... 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 100 mA |
| Setting Method | Teach-In |
| Housing Material | Plastic, PBT |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Output | NPN NO/NC switchable; RS-232 with Adapterbox |
| Weight | 28 g |
IndMALL Offers Wenglor NPN NO/NC Color Sensor WM03NCT2 at economical Choices. Product Tech Specs of WM03NCT2,includerange of 12 ... 18 mm it provides a working distance of 15 mm and a high resolution of 20 gray scales. With a switching hysteresis of < 2 %, the sensor uses white light across a wavelength of 400 ... 700 nm. It can handle ambient light up to 10,000 Lux and features a light spot diameter of 1.5 × 2.5 mm. The sensor operates on a supply voltage of 10 ... 30 V DC, consuming < 30 mA, with a switching frequency of 5 kHz and a response time of 100 µs. It functions effectively in temperatures ranging from -25 ... 60 °C, with a switching output voltage drop of < 2.5 V and a switching current of 100 mA. The device is equipped with a Teach-In setting method, housed in durable Plastic, PBT with a Plastic, PMMA optic cover, and offers IP67 protection. The connection is via an,M12 × 1; 4-pin with NPN NO/NC switchable; RS-232 with Adapterbox outputs.It's Time to get a Quote for your requirement of Wenglor NPN NO/NC Color Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
