Werner Relay | SPDT & Slim Relays
IndMALL Automation presents Werner Relays, designed for diverse applications and high reliability. Werner Relays are available in various configurations, including DPDT, 4PDT, SPDT, and 3PDT. They feature built-in options like LEDs, check buttons, latch buttons, and mechanical flag indicators. Current ratings range from 6A to 10A, ensuring versatile use. These relays are fully sealed and constructed with welded spots, ensuring durability. They are suitable for both AC and DC control voltages, with voltage ratings from 6V to 240V. Werner Relays are compact, with some models as small as 5mm in width. They offer a long operational life and are compatible with standard sockets.

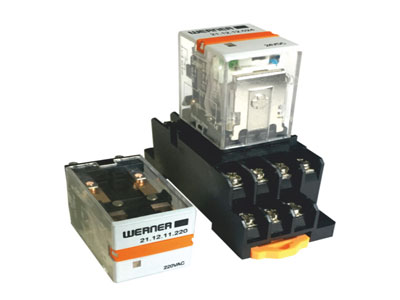

Werner Relay: 21 Series
Contacts: Available in DPDT and 4PDT configurations.
- Built-in Options: Includes LED, Check Button, Latch Button, and Mechanical Flag Indicator.
- Current Rating: 10A @ 220VAC for DPDT and 6A @ 220VAC for 4PDT relays.
- Construction: No soldering inside; all connections are welded spots.
- Standard Footprint: Compatible with any standard socket.
- Socket Range: Includes IP 20 finger protection type and PCB terminals.

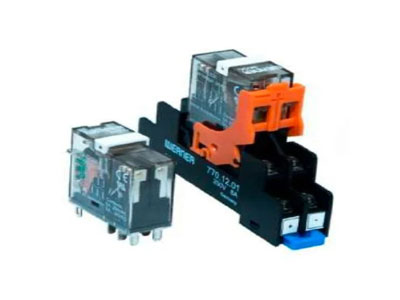

Werner DC Relay: 22 Series
Available Configurations: SPDT and DPDT options.
- Compact Design: Maximum functionality in minimum space.
- Frequency Compatibility: Suitable for 50 Hz and 60 Hz cycles.
- Voltage Options: Available in 6V, 12V, 24V, 110V, 220V, and 240V AC and DC.
- Built-in Diode Models: Contact capacity of 10 Amperes.

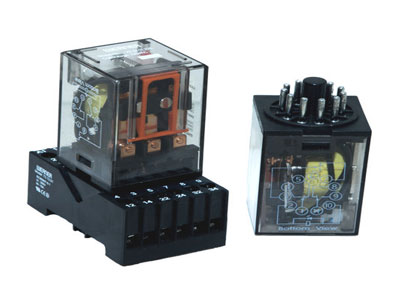

Werner SPDT Relay: 23 Series
Configurations: DPDT and 3PDT
- Frequency: Suitable for 50 Hz and 60 Hz
- Indicators: Built-in coil and contact status
- Voltage: 6V, 12V, 24V, 110V, 220V, and 240V AC/DC
- Heavy Duty: Suitable for heavy-duty or vibrating environments
- Load: Handles up to 10 Amperes continuous current
- Contacts: WERNER AFT (Anti-Fuse-Technology)

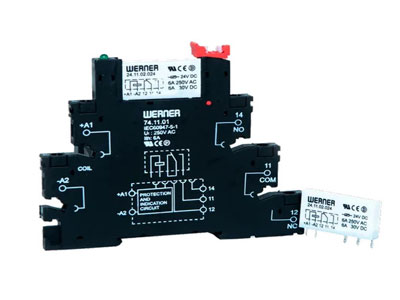

Werner DPDT Relay: 24 Series
Fully Sealed Type
- Contact Capacity: 6 Amps @ 230VAC
- Voltage Ratings: 6V to 48V AC/DC
- Mounting: Direct PC or panel mount via 74 Series sockets
- Compact Design: 5 mm width with relay and socket
- Operational Life: Over 100,000 operations

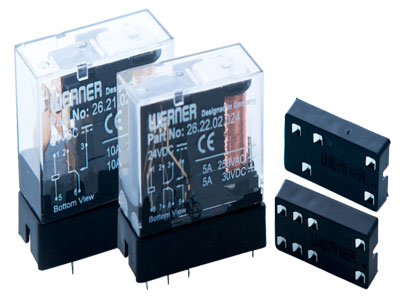

Werner Relay 24VDC: 26 Series
Dielectric Strength
- Configurations: SPDT, DPDT, SPST-NO, DPST-NO
- Contact Capacity: 8 Amps and 12 Amps
- Compact Size: Only 16 millimeters height
- Voltage Ratings: 6V to 240V AC and 6V to 110V DC
- Mounting Options: Direct PC Board, PCB socket, or panel mountable socket

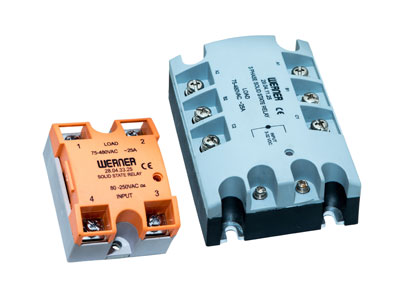

Werner Electric Relay: 28/29 Series
Fully Sealed Solid State Relays
- Current Range: 2 Amps to 100 Amperes
- Control Voltages: Available in both AC and DC
- Frequency: Suitable for 50 Hz and 60 Hz cycles
- Operation Indicator: Enables monitoring of operation
- Built-in Snubber Circuit: High efficiency for external surge protection
- Unique Heat Sink: Saves space and maximizes heat dissipation
Werner Slim Relay: 290 Series
Fully Sealed Solid State Relays
- Current Range: 2 Amps to 100 Amperes
- Control Voltages: Available in both AC and DC
- Frequency: Suitable for 50 Hz and 60 Hz cycles
- Operation Indicator: Enables monitoring of operation
- Built-in Snubber Circuit: High efficiency for external surge protection
- Unique Heat Sink: Saves space and maximizes heat dissipation
IndMALL Automation offers a wide range of Werner Relays for diverse applications. Werner Relays are designed for high reliability and versatility. Available configurations include Werner SPDT Relay, Werner DPDT Relay, and Werner DC Relay. These relays are suitable for both AC and DC control voltages. Werner Relay 24VDC models are compact and efficient. Werner Electric Relays feature built-in options like LEDs, check buttons, and latch buttons. They handle current ratings from 6A to 10A. Werner Slim Relays are fully sealed and designed for space-saving applications. With voltage ratings from 6V to 240V, Werner Relays meet various industrial needs. Choose Werner Relays for durable, high-performance solutions in your automation projects.
Frequently Asked Questions
What is the purpose of relay?
A relay allows circuits to be switched by electrical signals. It enables control of high-power devices with low-power signals. For example, a timer circuit with a relay can switch power at a preset time. Relays provide precise control and automation in various applications. They are essential for managing electrical circuits safely and efficiently.
What is relay and its types?
A relay is an electrically operated switch used to isolate and control circuits. It allows a low-power signal to control a high-power circuit. Types of relays include electromechanical relays, solid-state relays, and reed relays. Each type is used for specific applications, offering various advantages in switching and circuit control.
When to use a relay?
Use a relay when you need to control a high-power circuit with a low-power signal. Relays provide complete electrical isolation between the control and the controlled circuits. They are essential for automation, switching, and safety applications. Relays are used in industrial controls, home automation, and automotive systems.
What is called relay?
A relay is a switch used to open and close circuits electronically or electromechanically. It allows a low-power signal to control a high-power circuit. Relays provide electrical isolation between control and load circuits. They are essential in automation, protection, and control systems.
