Yokogawa Temperature Controllers: Limit Digital Controller
IndMALL brings you a range of Yokogawa Temperature Controllers, perfect for controlling heat in different machines. These controllers, like the UT35A, UT32A, UT75A, and others, have easy-to-read screens, work with many types of inputs and outputs, and can be set in various ways to manage temperature. They are smart, can connect to networks, and are small in size, fitting easily in your setup. Our Yokogawa products are built to last, easy to use, and help make your temperature control tasks simpler and more effective.

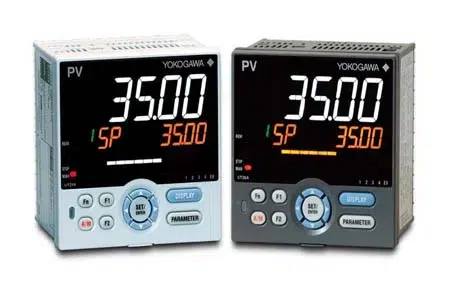

Yokogawa Temperature Controllers : UT35A/UT32A
- Display: 14-segment large color LCD.
- Control Modes: 5 types including PID and ON/OFF.
- Ladder Control: Built-in, replaces small PLCs.
- Input/Output: Universal, ±0.1% accuracy.
- Auto-tuning: Two algorithms, adjustable limits.
- Fuzzy Logic: SUPER and SUPER2 functions.
- Networking: Ethernet, PROFIBUS-DP, CC-Link, DeviceNet.
- Design: Compact, space-saving.
- Languages: Multiple options.
- Reliability: 3-year warranty, NEMA4/IP66.
- Power: 100 to 240 VAC or 24 VAC/DC.
Yokogawa Digital Temperature Controller: UT75A
- Control Loops: 1 standard, up to 2 maximum.
- Display: 14-segment, 5-digit color LCD.
- Input Types: Universal (TC, RTD, mV, V, mA).
- Output Types: Relay, Voltage Pulse, Current.
- Control Algorithms: ON/OFF, PID, Heating/Cooling, etc.
- Digital I/O: Up to 8 inputs and outputs each.
- Program Patterns: Up to 20 segments.
- Power Supply: 100 to 240 VAC or 24 VAC/DC.
- Design: Compact, 65 mm depth.

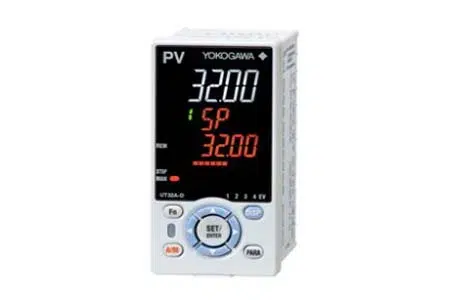

Yokogawa Temp Controllers: UT32A-V/C/R
- Control Type: Single-loop, 1/8 DIN size.
- Display: 14-segment large color LCD.
- Features: Fuzzy logic control.
- Design: Compact, 65-mm depth.
- Networking: RS-485 (Modbus/RTU, peer-to-peer, coordinated, PC-Link).
- Reliability: 3-year warranty, NEMA4/IP66 front panel.
- Languages: Supports English, Spanish, French, and German.
- Software Compatibility: LL50A parameters setting software (sold separately).

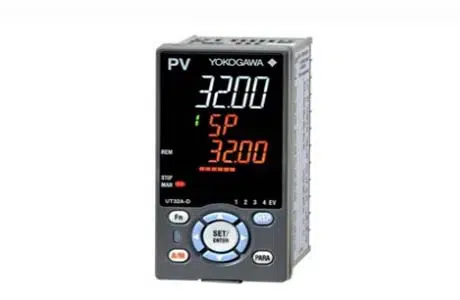

Yokogawa Digital Temp Controllers: UT32A-D
- Control: 2-loop with ladder sequence.
- Display: Large color LCD.
- Features: Advanced control, fuzzy logic.
- Design: Compact, 65 mm depth.
- Networking: RS-485, Modbus/RTU.
- Reliability: 3-year warranty, NEMA4/IP66.
- Languages: Multi-language support.
- Software Compatibility: LL50A (separate).

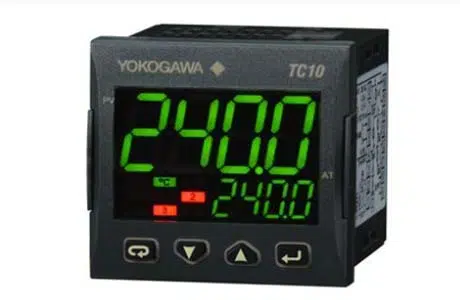

Yokogawa Temperature Limit Controller: TC10
- Size: 48 x 48 mm (1/16 DIN), depth 48 mm + 14 mm (terminals).
- Display: 3-color LED.
- Input: Universal (TC, mV, V, mA, Pt100-Pt1000).
- Set Points: 4 with alarm functions.
- Communication: RS-485 Modbus.
- Control: PID, ON/OFF, Auto-tuning.
- Front Panel: IP65 (with optional gasket).

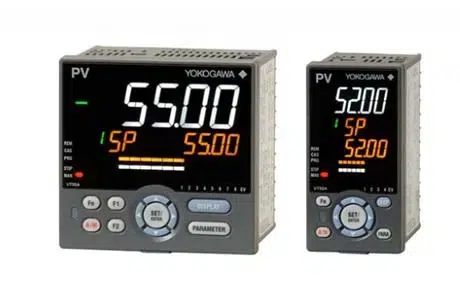

Yokogawa Temp Controller: UT55A/UT52A
- Inputs: Up to 4 analogs.
- Display: 14-segment, 5-digit color LCD.
- Outputs: Relay, Voltage Pulse, Current.
- Control Modes: 8 types including PID.
- Digital I/O: Up to 9 inputs, 18 outputs (UT55A); 5 inputs/outputs (UT52A).
- Networking: RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet.
- Design: Compact, 65 mm depth.
- Reliability: 3-year warranty, NEMA4/IP66.
- Power: 100 to 240 VAC or 24 VAC/DC.
Frequently Asked Questions
What is The TC10 Temperature Controller?
The TC10 is a temperature controller made by Yokogawa.
It’s a small device with a bright 3-color LED display. This display shows temperature readings clearly. The controller’s compact size helps save space.
It can take input from different sources like thermocouples and sensors. The TC10 offers quick setup with its easy configuration codes.
It has features like PID control and auto-tuning. This makes sure temperatures are accurate. Plus, it can connect with other devices using RS-485 Modbus communication. This TC10 is a reliable tool for controlling temperature.
What is The UT350l Limit Controller?
The UT350L is a type of limit controller made by Yokogawa.
It’s a device that helps set safe temperature limits. If temperatures go too high or too low, it gives an alert.
This controller uses a clear display to show readings. The main job of the UT350L is to prevent equipment damage.
By monitoring temperatures, it ensures that machines work safely. If things get too hot or cold, it can stop processes.
In short, the UT350L controller is like a safety guard for equipment. It ensures things don’t overheat or freeze.
What is The Output of Temperature Controller?
A temperature controller manages heat in machines and spaces.
Its output is a command to raise or lower temperature. It tells heaters or coolers to turn on or off.
When things get too cold, it turns heaters on. If it’s too hot, it switches on coolers.
The output ensures everything stays at a set temperature. So, machines work well, and spaces feel comfortable.
In essence, the controller’s output maintains the perfect temperature by adjusting heaters or coolers.
Why PID Controller is Used for Temperature Control?
The PID controller is like a smart thermostat for machines.
It uses three methods to control temperature: Proportional, Integral, and Derivative (PID).
The Proportional part responds to present temperature errors. If it’s too hot or cold, it adjusts quickly.
The Integral part looks at past errors. If the temperature was off for a while, it fixes that.
The Derivative part predicts future errors. It makes changes before temperature drifts happen.
Together, these methods give precise temperature control. That’s why PID controllers are popular for temperature tasks.
Visit Yokogawa Temperature Controllers at IndMALL and request a pricing quote today.
